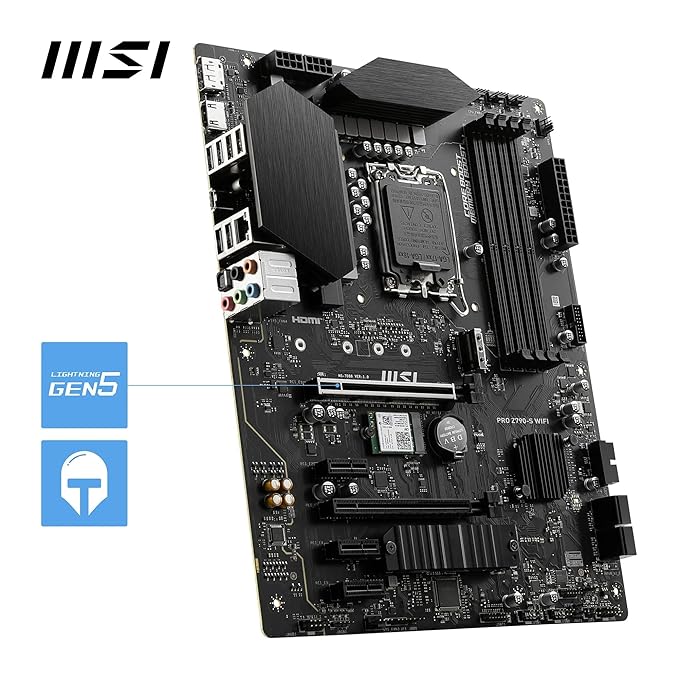

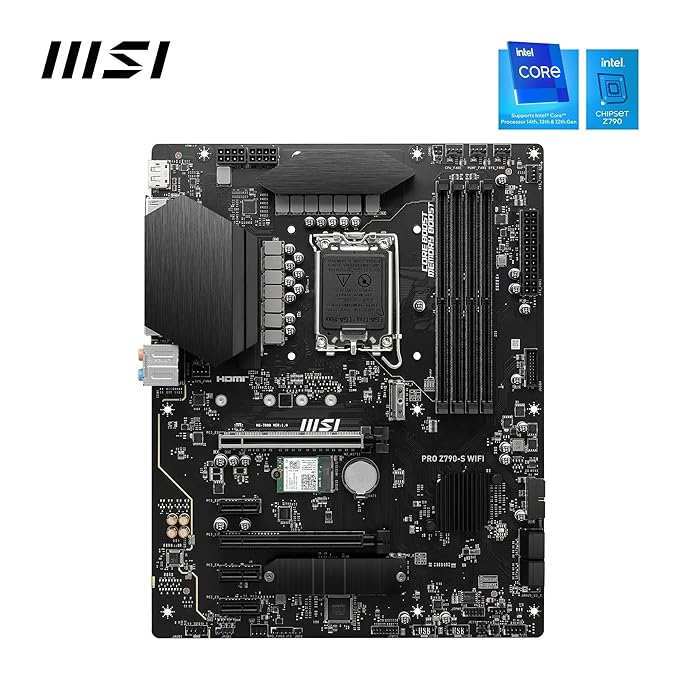

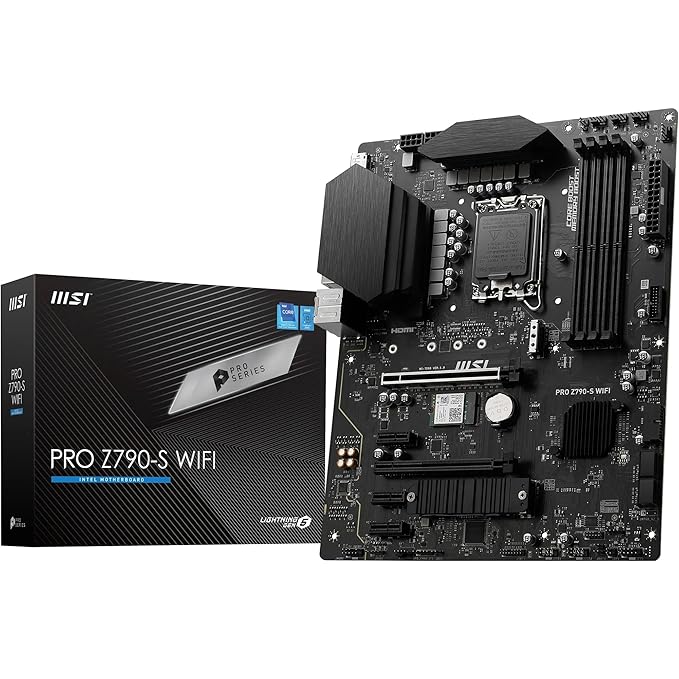

MSI PRO Z790-S WiFi Motherboard, ATX – Supports 14th/13th/12th Gen Intel Core Processors, LGA 1700 – DDR5 Memory Boost 6600+MHz/OC, PCIe 5.0 x16 Slot, M.2 Gen4 Slots, Wi-Fi 6E, 2.5G LAN

PRO Z790-S WIFI: Business Elegance Designed for value-oriented creative businesses employing the Intel Z790 chipset (12th & 13th Gen Intel Core supported,LGA 1700), the MSI PRO Z790-S WIFI motherboard includes a primary PCIe 5.0 x16 graphics card slot (with Steel Armor),improved DDR5 memory module support (6600MHz/OC), and dual M.2 Gen4 storage options (secondary with Shield Frozr).To ensure reliable power delivery to 13th Gen Intel Core desktop processors, the MSI PRO Z790-S WIFI is equipped with a 12 duet rail power system (P-PAK) and a fully digital power design VRM platform with Core Boost, augmented with passive & active – Frozr AI – cooling. MSI Z790 pro motherboards feature durable PCBs and PCIe Steel Armor to support the primary graphics card slot.Connectivity includes Realtek 2.5G LAN, USB 3.2 Gen 2×2 Type-C (20Gbps), 4K/60Hz display support, and 7.1 HD Audio. For professionals looking for dependable 12th or 13th Gen Intel Core performance with PCIe 5.0 x16 graphics card support, improved DDR5 memory support, and dual M.2 Gen4 storage options, the MSI PRO Z790-S WIFI epitomizes business elegance.

highlights

• 12TH & 13TH GEN CORE – The PRO Z790-S WIFI (ATX) employs a 12 Duet Rail Power System (P-PAK) VRM for the Intel Z790 chipset (LGA 1700,
• 12th & 13th Gen Core); The VRM features MSI Core Boost technology for improved stability & performance

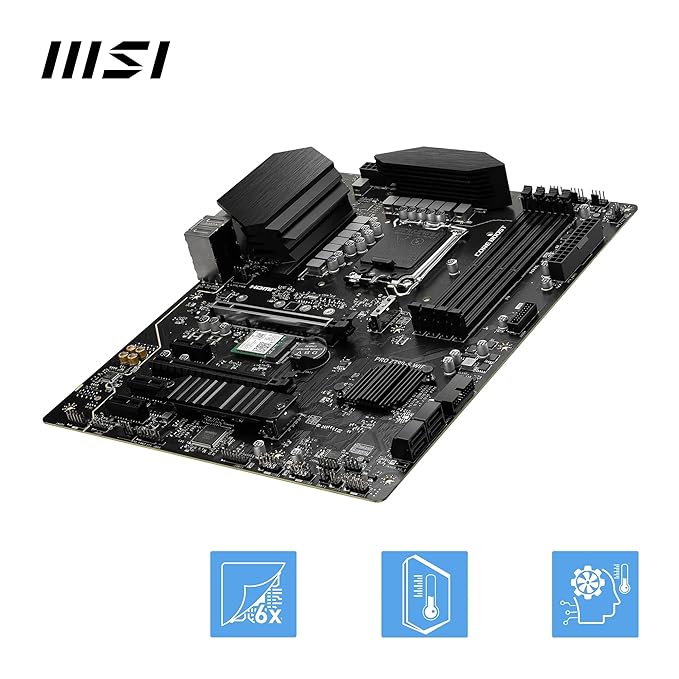

• INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink,
• M.2 Shield Frozr, active Frozr AI CPU & GPU responsive cooling, a dedicated pump-fan header & 6-layer PCB

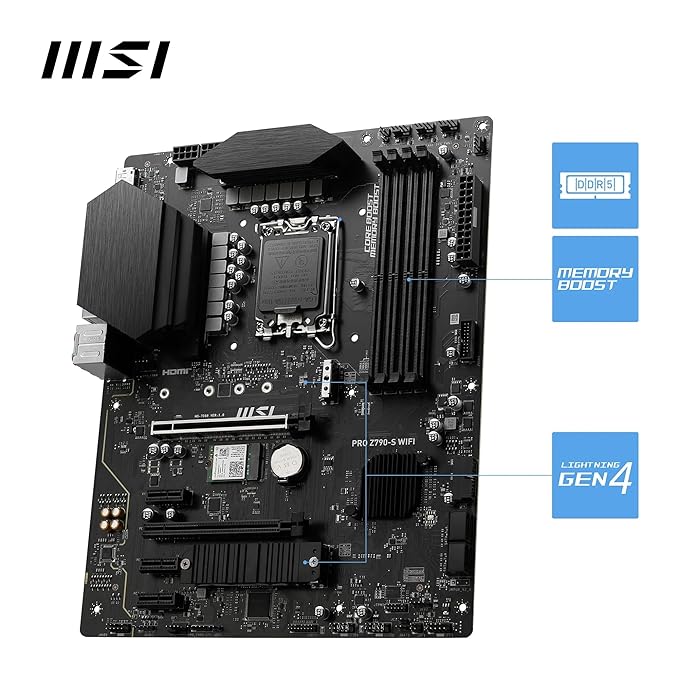

• DDR5 MEMORY, PCIe 5.0 x16 SLOT – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R,
• 6600+ MHz); Primary PCIe x16 slot supports PCIe 5.0 (128GB/s) and includes Steel Armor
• DUAL M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 x4 64Gbps slots;
• The secondary M.2 slot includes Shield Frozr to prevent thermal throttling during hyper-fast SSD access
• WI-FI 6E CONNECTIVITY – Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN controller;
• Rear ports include USB 3.2 Gen 2×2 Type-C (20Gbps), HDMI 1.4, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost
