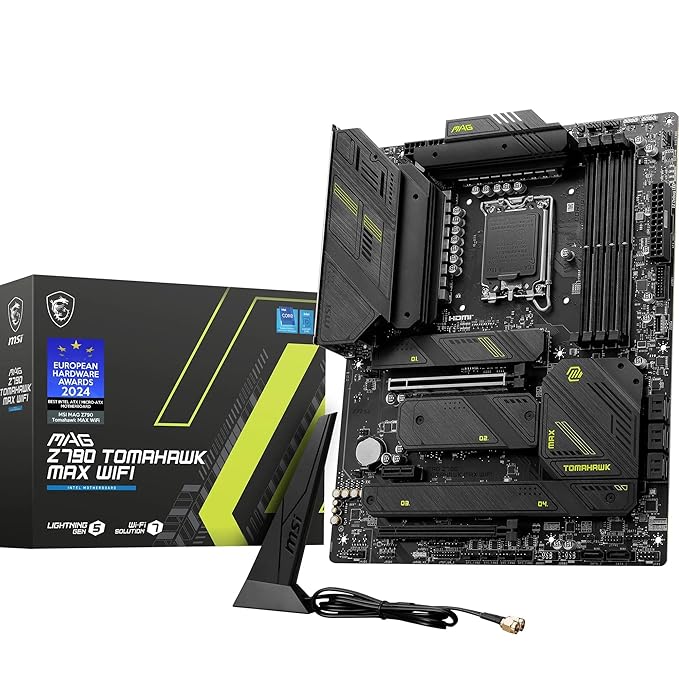

MSI MAG Z790 Tomahawk MAX WiFi Motherboard, ATX – Supports 14th/13th/12th Gen Intel Core Processors, LGA 1700 – DDR5 Memory Boost 7200+MHz/OC, 1 x PCIe 5.0 x16, 1 x M.2 Gen5, 2.5G LAN, Wi-Fi 7

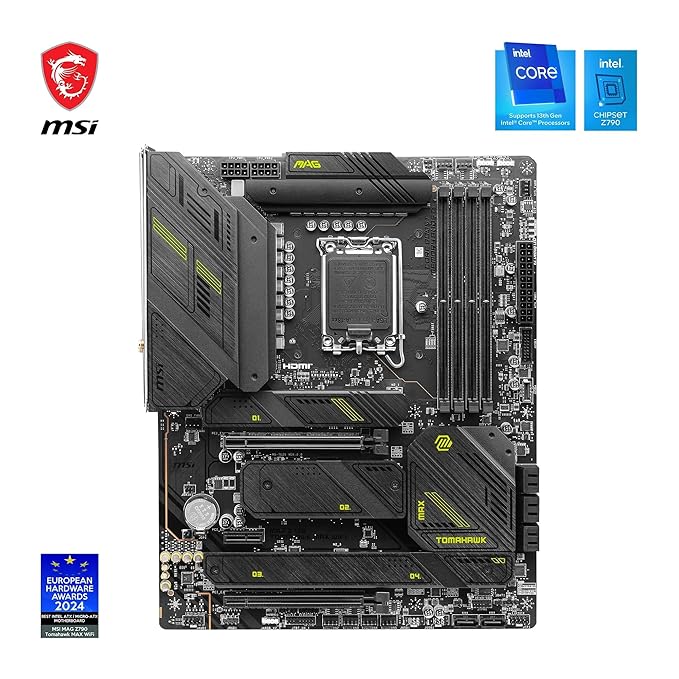

MSI MAG Z790 Motherboard

HIGHLIGHTS

• 12TH & 13TH GEN CORE – The MAG Z790 TOMAHAWK MAX WIFI is an ATX motherboard outfitted with the latest Intel Z790 chipset (LGA 1700, 12th & 13th Gen Core); The VRM features MSI Core Boost technology for improved stability & performance
• INTEGRATED & AI COOLING – VRM cooling features 7W/mK MOSFET thermal pads. Additional cooling includes chipset heatsink, M.2 Shield Frozr; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
• DDR5 MEMORY, PCIe 5.0 x16 SLOT – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7200+ MHz); 1 x PCIe 5.0 x16 slot (128GB/s) supports graphics cards and includes Steel Armor
• QUAD M.2 CONNECTORS – Storage options include 1x M.2 Gen5 x4 128Gbps slot and 3 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent thermal throttling during hyper-fast SSD access; Features a tool-free installation system with EZ M.2 Clips
• WI-FI 7 CONNECTIVITY – Network hardware includes a Wi-Fi 7 module with Bluetooth 5.4 & an Intel 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2×2 Type-C (20Gbps), HDMI 2.1 and 7.1 HD Audio with Audio Boost 5

From the manufacturer

MAG Z790 Tomahawk MAX WiFi

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

MAG Z790 TOMAHAWK MAX WIFI

Unite as One

The MAG Z790 TOMAHAWK MAX WIFI is a gaming oriented ATX motherboard constructed around the latest Intel Z790 chipset that balances value with premium hardware.

• Supports Intel Core 12th & 13th Gen Processors (LGA 1700)
• 16 Mirrored Power Arrangement with 90A SPS
• 4 x DDR5 DIMMs with Memory Boost: Dual Channel (192B Max. / 7200MHz+ OC)
• 1 x PCI-e 5.0 x16 slot
• Lightning Gen5 M.2 & M.2 Shield Frozr
• USB 3.2 Gen 2×2 Type-C (20Gbps)
• 7.1 HD Audio with Audio Boost 5
• Intel 2.5G LAN, Wi-Fi 7 & Bluetooth 5.4

Supports Intel Core 12th & 13th Gen Processors

The MAG Z790 TOMAHAWK MAX WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1700 Chipset: Intel Z790

16 Mirrored Power Arrangement

With its dual 8 pin power connectors and exclusive Core Boost technology, the Z790 TOMAHAWK MAX WIFI is able to sustain heavy CPU power loads to support system-demanding work settings: 1. Digital PWM IC 2. 16 Mirrored Power Arrangement with 90A SPS 3. 1-Phase GT Power 4. 1-Phase AUX Power

Integrated Cooling Features

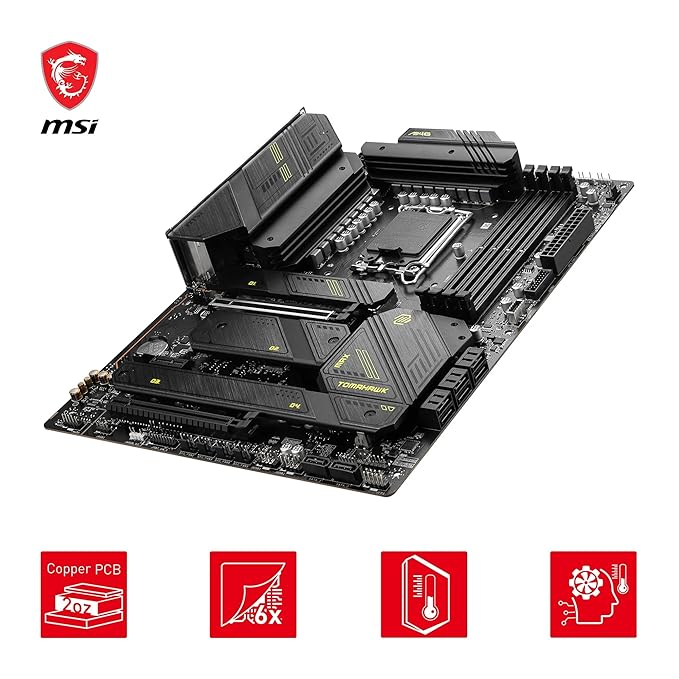

VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

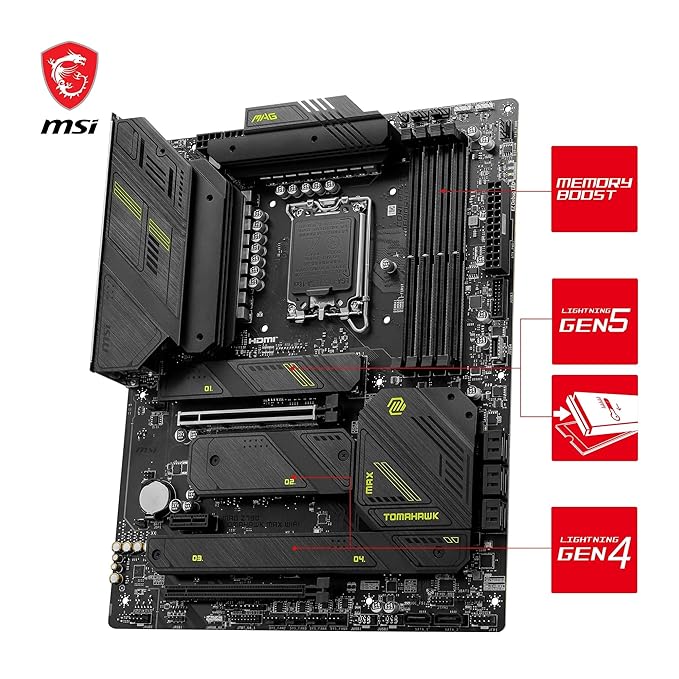

4 x DDR5 Dual Channel (7200+ MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 7200+ MHz, supports Intel XMP.

1 x Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor) 1 x PCIe 4.0/3.0 x16 slot* 1 x PCIe 3.0 x1 slots *Supports x16/x4

Gen5 & Gen4 M.2 Connectors

The MAG Z790 TOMAHAWK MAX WIFI motherboard features MSI’s Gen4 M.2 slots: 1 x Gen5 x4 128Gbps slot* 3 x Gen4 x4 64Gbps slots* *with M.2 Shield Frozr

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 7 & Bluetooth 5.4

2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps. Wi-Fi 7: Features the latest Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology. HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.
