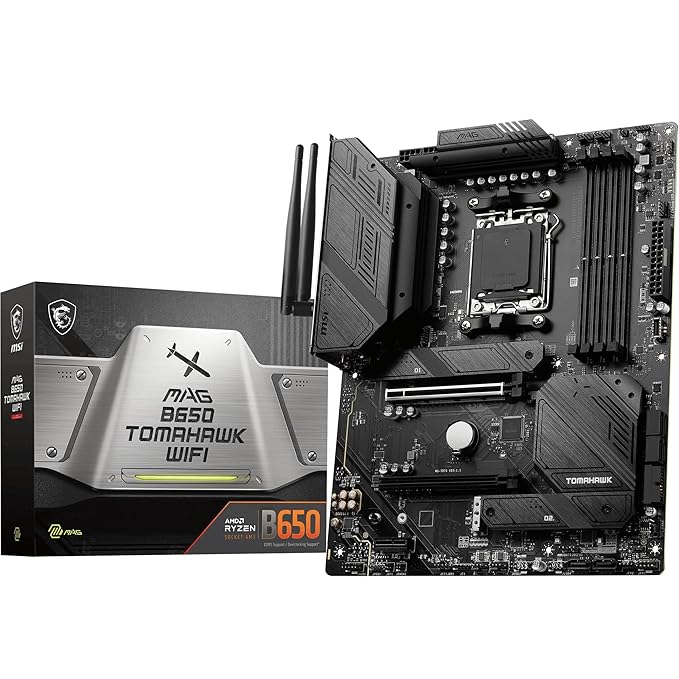

MSI MAG B650 Tomahawk WiFi Motherboard, ATX – Supports AMD Ryzen 7000 Series Processors, AM5-14 Duet Rail 80A VRM, DDR5 Memory Boost 6400+MHz/OC, 2 x PCIe 4.0 x16, 3 x M.2 Gen4

Supports AMD Ryzen 7000 Processors

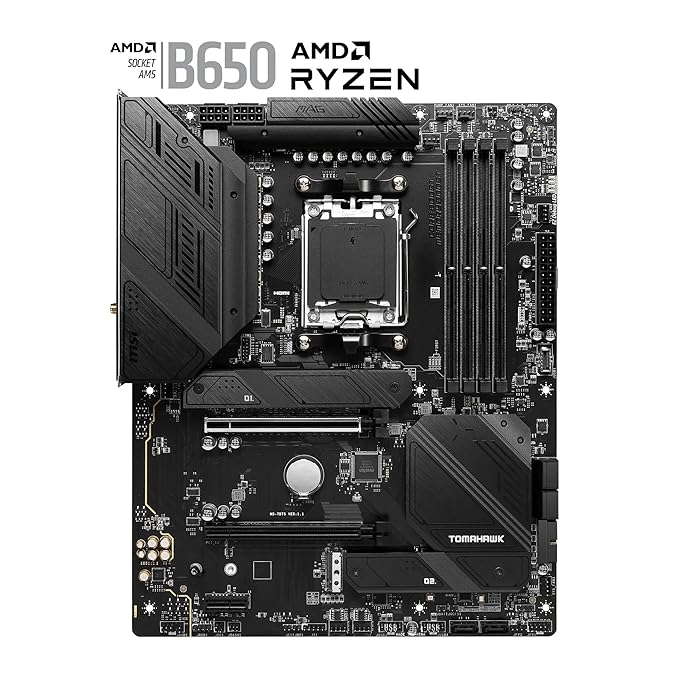

The MAG B650 TOMAHAWK WIFI motherboard supports AMD Ryzen 7000 processors.

Form Factor: ATX

Socket Type: AM5

Chipset: AMD B650

14+2 Phase VRM with 80A Smart Power Stage

With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B650 TOMAHAWK WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:

• Digital PWM IC
• 14-Phase Duet-Rail CPU Power (80A)
• 2-Phase SOC Power
• 1-Phase MISC Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

2 x Fortified PCI-e 4.0 x16 Slots

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

2 x PCI-e 4.0/3.0 x16 slots (primary with Steel Armor*)

*Supports x16/x4

4 x DDR5 Dual Channel (6400+ MHz Overclocked*)

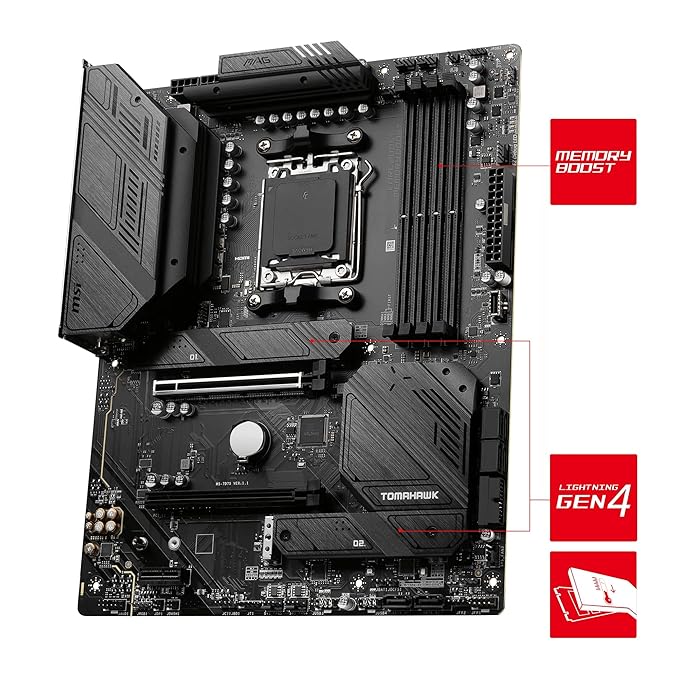

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 6400 MHz, supports AMD EXPO.

Gen4 M.2 Connectors

The MAG B650 TOMAHAWK WIFI motherboard features MSI’s latest M.2 slots: 3 x Gen4 x4 64Gb/s slots

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

USB Audio: 7.1-Channel High Performance Audio with Audio Boost 5 & S/PDIF output
