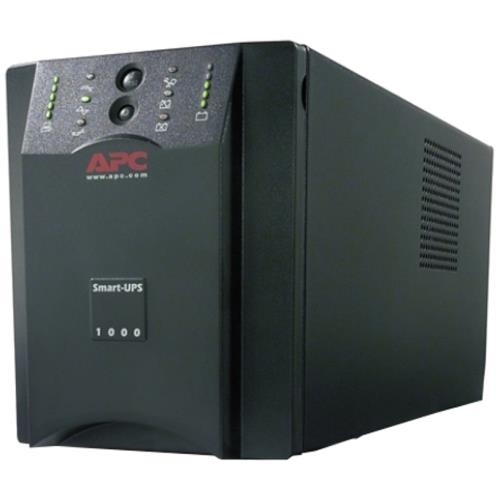

APC 1 KVA ONLINE UPS SUA1000I-IN

23,690.00

In stock

APC 1 KVA ONLINE UPS SUA1000I-IN APC Smart-UPS 1000VA USB and Serial 230V. Intelligent and efficient network power protection from entry level to scaleable runtime

APC 1 KVA ONLINE UPS SUA1000I-IN

APC 1 KVA ONLINE UPS SUA1000I-IN APC Smart-UPS 1000VA USB and Serial 230V. Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

APC Smart-UPS 1000VA (SUA1000I)  is high performance power protection for servers, and voice and data networks. It protects your data by supplying reliable, network-grade power.

Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM’s.

With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management.

APC 1 KVA ONLINE UPS SUA1000I-IN Connectivity is through serial or USB port, Additional manageability is available through the SmartSlot.

Output

  • Output Power Capacity : 670 Watts / 1000 VA
  • Max Configurable Power : 670 Watts / 1000 VA
  • Nominal Output Voltage : 230V
  • Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
  • Output Voltage Distortion : Less than 5% at full load
  • Output Frequency (sync to mains) : 47 – 53 Hz for 50 Hz nominal,57 – 63 Hz for 60 Hz nominal
  • Waveform Type : Sine wave
  • Output Connections : (8) IEC 320 C13, 2) IEC Jumpers

Input

  • Nominal Input Voltage : 230V
  • Input Frequency : 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections : IEC-320 C14
  • Input voltage range for main operations : 160 – 286V
  • Input voltage adjustable range for mains operation : 151 – 302V

Batteries & Runtime

  • Battery Type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time : 3 hour(s)
  • Replacement Battery : RBC6
  • RBC� Quantity : 1

Communications & Management

  • Interface Port(s) : DB-9 RS-232,SmartSlot,USB
  • Available SmartSlot� Interface Quantity : 1
  • Control panel : LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
  • Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO) : Optional

Surge Protection and Filtering

  • Surge energy rating : 320 Joules
  • Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height : 216.00 mm
  • Maximum Width : 170.00 mm
  • Maximum Depth : 439.00 mm
  • Net Weight : 18.86 KG
  • Shipping Weight : 20.91 KG
  • Shipping Height : 381.00 mm
  • Shipping Width : 330.00 mm
  • Shipping Depth  : 584.00 mm
  • Color : Black
  • Units per Pallet : 24.00

Environmental

  • Operating Environment : 0 – 40 �C
  • Operating Relative Humidity : 0 – 95%
  • Operating Elevation : 0-3000 meters
  • Storage Temperature : -15 – 45 �C
  • Storage Relative Humidity : 0 – 95%
  • Storage Elevation : 0-15000 meters
  • Audible noise at 1 meter from surface of unit : 41.00 dBA
  • Online Thermal Dissipation : 100.00 BTU/hr

Conformance

  • Regulatory Approvals : C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE
  • Environmental Compliance : RoHS 7b Exemption,China RoHS
Model
Brand APC
Series Smart-UPS
Model SUA1000I
Input
Input Voltage Range 230V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Output
VA Rating 1000 VA
Watts 670 Watts
Output Voltage 230V
Outlets 8
Battery
Battery Run Time 150 Minutes
Spec
Interface Port DB-9 RS-232,USB,SmartSlot
Management Software YES
Approvals C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE
Surge Protection
Surge Energy Rating 320 Joules
Physical Spec
Weight 18.86 KG
Dimensions 216.00 mmx170.00 mmx439.00 mm

Ready to ship in 1-3 business days
